"Nemisis AL" series

Modular Series Audio Racks

Those of you that are familiar with "T-slot" extruded aluminum recognize the versatility of this system. Much like a childs erector set, these universal components allow you to design and build a rack having virtually any configuration you can imagine. We offer these racks two ways: Complete turn-key rack packages or as mix-n-match component sets. Just send us a sketch or a written description of you requirements and will provide you with all the materials needed to build your "custom" rack.

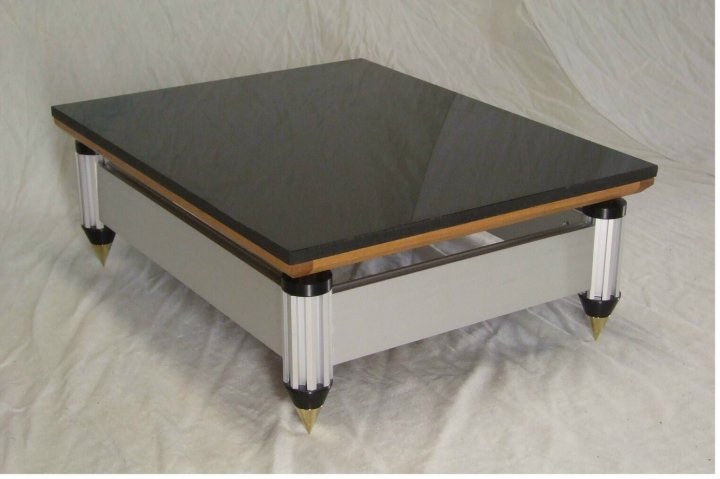

Standard version with 18x18 black Multi-Element platform: $ 350.00 add cherry trim for an extra $75.00

Large version black 19x24 platform: $450.00 list

Premium version with 19x24 Multi-element platform and cherry trim: $550.00 list

Learn more about the imigi maple platforms.

Learn more about the Adona Multi-element platforms.

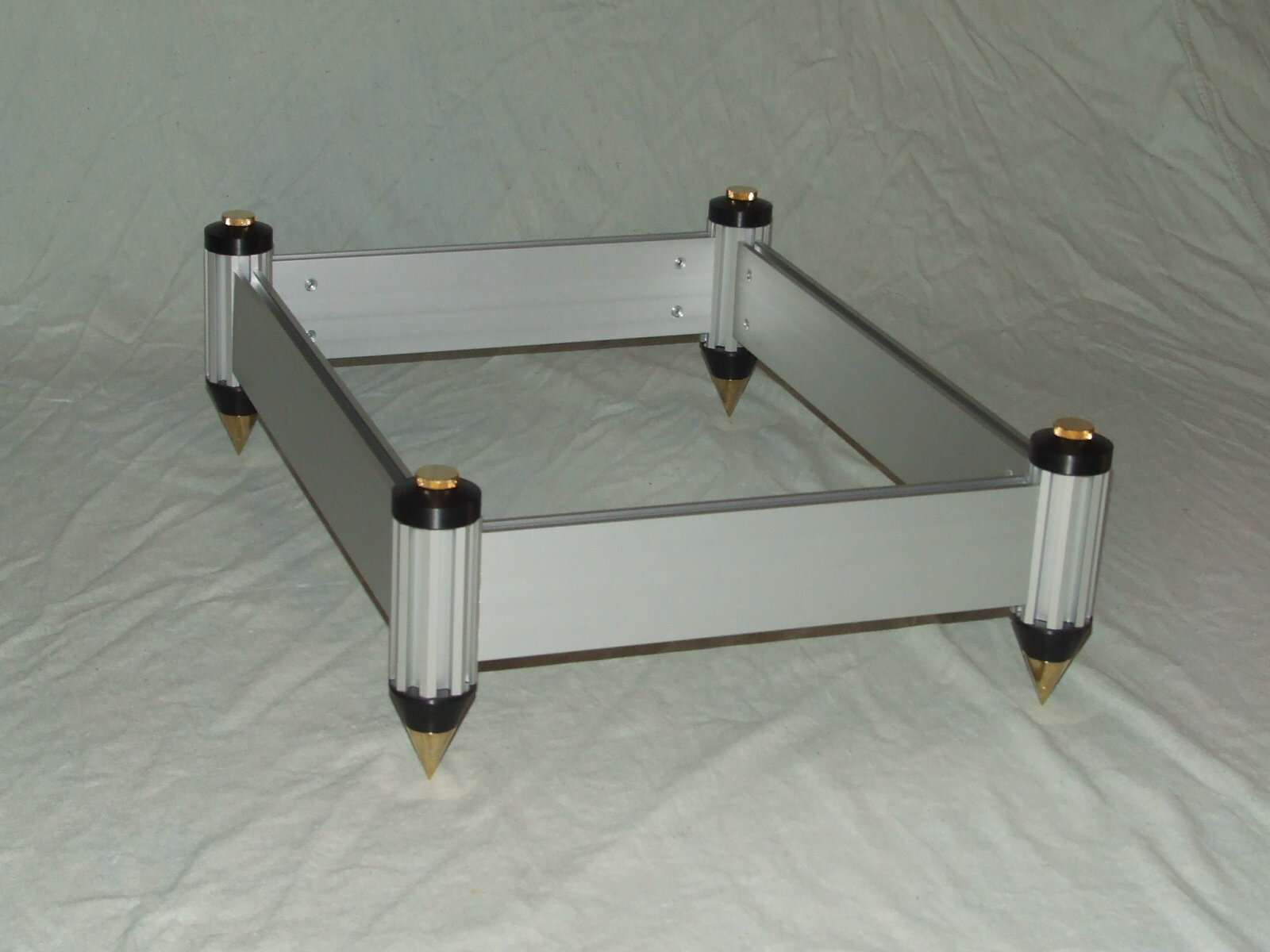

The Frame Assembly:

The simple, clean design of this rack frame is based on just two basic components: the cross-beam and the column. Much like a childs erector set, these universal components allow you to design and build a rack having virtually any configuration you can imagine. And better yet, if your needs change, just tear it apart and start over. Also available in black.

We offer these racks two ways: Complete turn-key rack packages , or as mix-n-match component sets. Just send us a sketch or a written description of you requirements and will provide you with all the materials needed to build your "custom" rack. We stock the aluminum beams and columns in 16 foot lengths. For a small additional charge we will cut them to any length, machine the ends, and pre-install the connector assemblies.

The Sub-frame

Extruded aluminum cross-beams, machined ends with pre-installed connector assemblies. A universal T-slot runs along the top edge, making it easy to intall after-market coupling and wire-management devices.

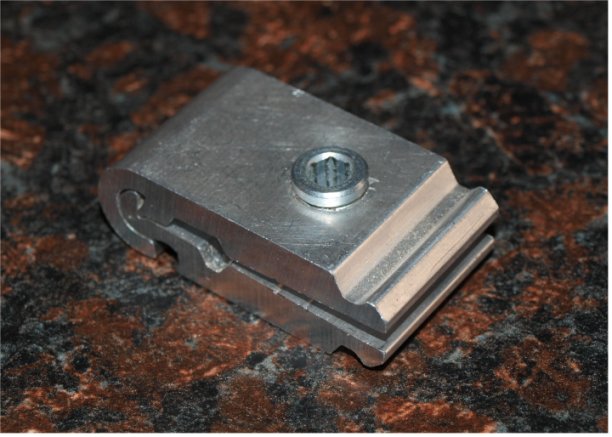

The Connectors:

The patented, connectors make assembly a snap! The entire rack may be assembled using just one simple allen wrench. Rotating the socket-head screw causes the T-bar to retract, thus locking the cross-beam to the column.

The Capitals

Commonly referred to as "end caps" on most racks, these precision machined units serve several functions on the Adona rack. Obviously they add a "finishing touch" to the top of the column, but more importunately they provide a means of coupling (or decoupling) and allow platforms or additional rack layers to be placed above the columns.

The Footers:

The primary function of spiking is to focus the weight of the rack onto an infinitely small surface area, although some floor finishes make the use of such devices impractical. Therefore, we offer optional floor discs, as well as glides and casters.

Specifications:

Shipping weight 30 lbs.

Load capacity: 200 pounds

Overall Dimensions (standard version): Width 18", Depth 18", height 7"

Platform size: Standard 18"x18" or optional 19"x24"
