"Nemisis AL" series

Modular Series Audio Racks

The Nemisis AL series now features an improved connector system that provides lower cost and increased strength over the earlier versions. You will notice that our latest designs use smaller cross members, but yet retain all of the strength of the original design. As with most Adona designs, the newer versions are 100 percent "backward compatible" with the earlier versions and may be combined with your existing rack!

Those of you that are familiar with "T-slot" extruded aluminum recognize the versatility of this system. Much like a childs erector set, these universal components allow you to design and build a rack having virtually any configuration you can imagine. We offer these racks two ways: Complete turn-key rack packages or as mix-n-match component sets. Just send us a sketch or a written description of you requirements and will provide you with all the materials needed to build your "custom" rack.

Pricing:

With two shelves: $600.00 list

With three shelves: $850.00 list

With four shelves: $1100.00 list

With five shelves: $1350.00 list

Matching amp stand: $350.00 list

Note: all units include standard platform couplers, add $25.00 per level for brass couplers

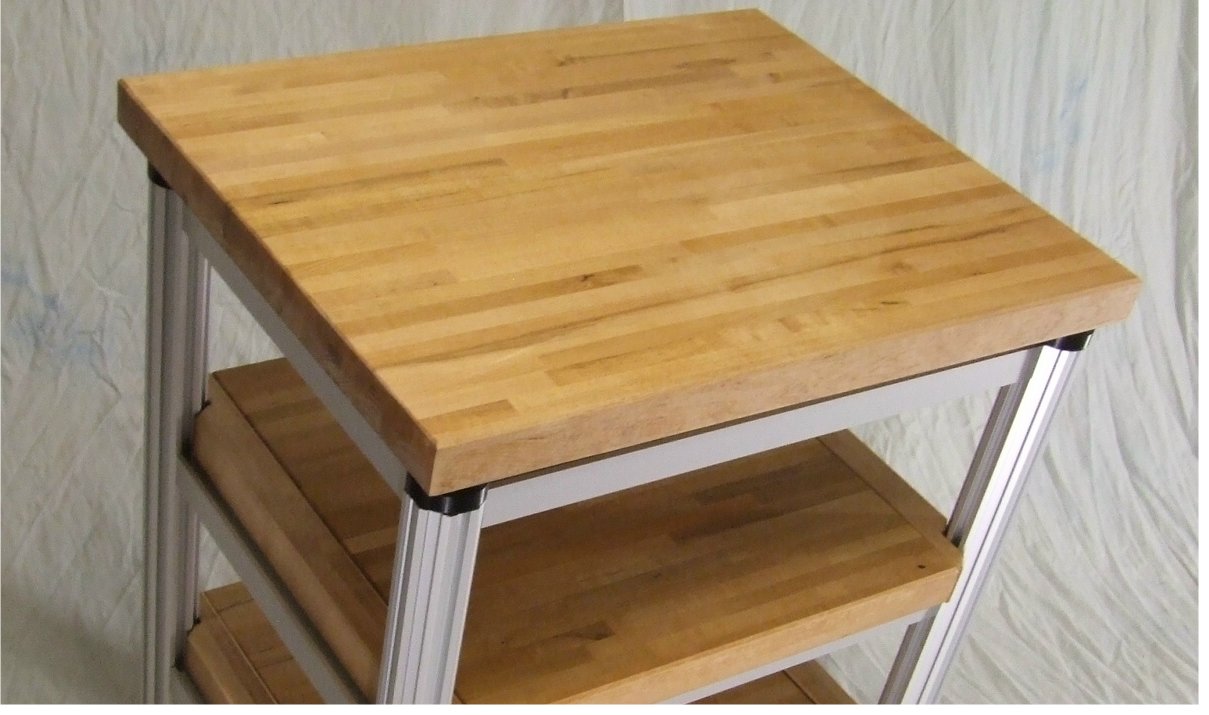

imigi Solid Maple Platforms:

This rack comes standard with imigi solid-maple audio-grade platforms. The platforms may be upgraded to Adona Multi-element platforms for a small additional charge.

Learn more about the imigi maple platforms.

Learn more about the Adona Multi-element platforms.

The Frame Assembly:

The simple, clean design of this rack frame is based on just two basic components: the cross-beam and the column. Much like a childs erector set, these universal components allow you to design and build a rack having virtually any configuration you can imagine. And better yet, if your needs change, just tear it apart and start over. Also available in black, at no extra charge!

We offer these racks two ways: Complete turn-key rack packages , or as mix-n-match component sets. Just send us a sketch or a written description of you requirements and will provide you with all the materials needed to build your "custom" rack. We stock the aluminum beams and columns in 16 foot lengths. For a small additional charge we will cut them to any length, machine the ends, and pre-install the connector assemblies.

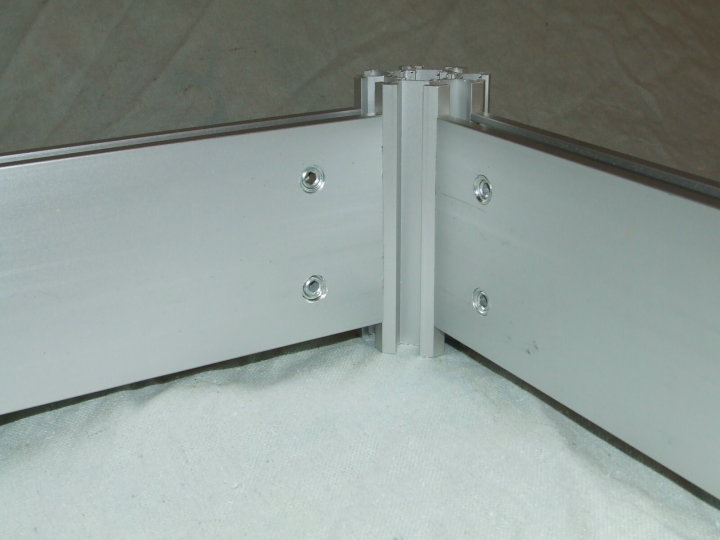

The Sub-frame

Extruded aluminum cross-beams, machined ends with pre-installed connector assemblies. A universal T-slot runs along the top edge, making it easy to intall after-market coupling and wire-management devices.

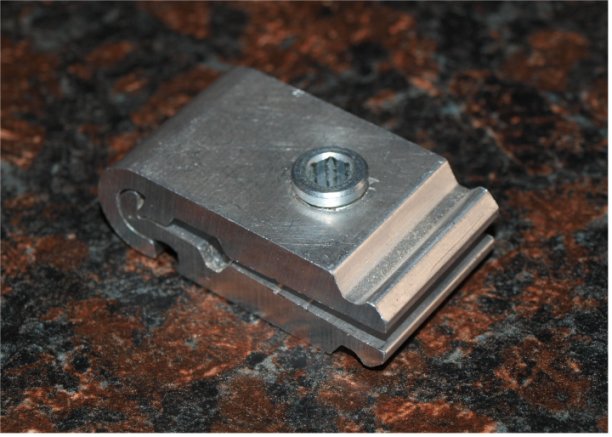

The Connectors:

The patented, connectors make assembly a snap! The entire rack may be assembled using just one simple allen wrench. Rotating the socket-head screw causes the T-bar to retract, thus locking the cross-beam to the column.

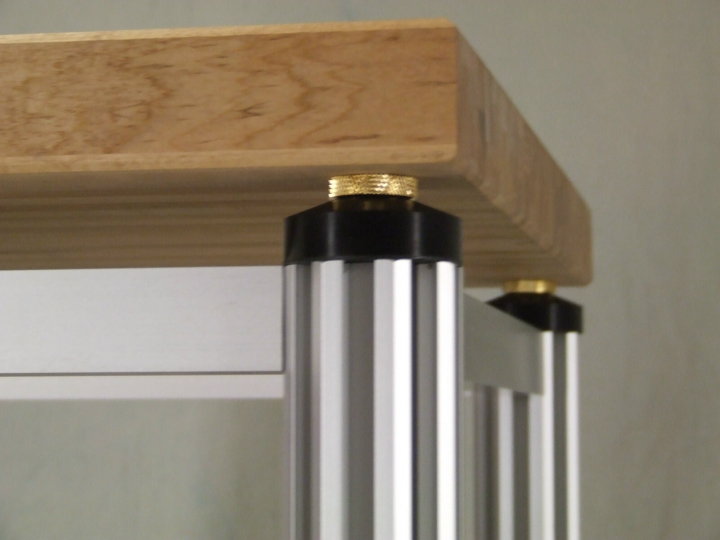

The Capitals

Commonly referred to as "end caps" on most racks, these precision machined units serve several functions on the Adona rack. Obviously they add a "finishing touch" to the top of the column, but more importunately they provide a means of coupling (or decoupling) and allow platforms or additional rack layers to be placed above the columns.

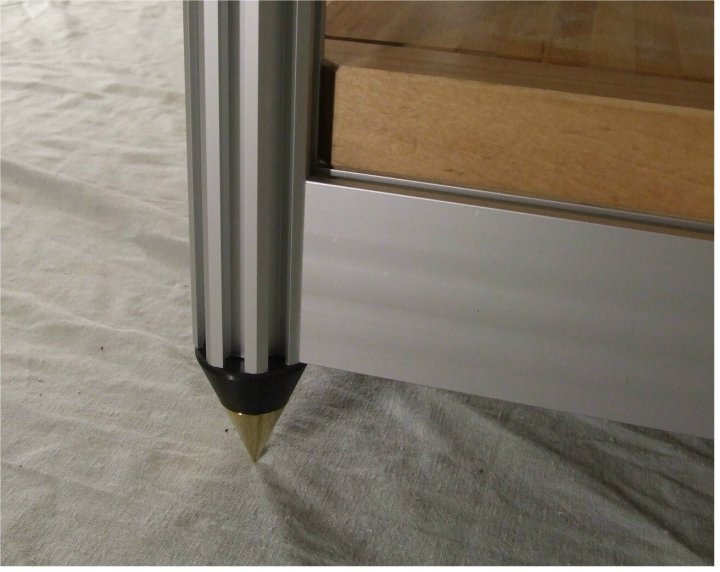

The Footers:

The primary function of spiking is to focus the weight of the rack onto an infinitely small surface area, although some floor finishes make the use of such devices impractical. Therefore, we offer optional floor discs, as well as glides and casters.

Specifications:

Shipping weight 90 lbs. (4-shelf version)

Load capacity: 200 pounds per shelf

Overall Dimensions: Width 23.5", Depth 18", height 37" (other heights available)

Platform size: Includes three Standard 18"x18" and one oversize 19"x24"

Maximum component size: Lower shelves: 19.5" wide

Maximum component size: Turntable top shelf: 24" wide, 19" deep

Maximum component size: Optional larger turntable top shelf: 27" wide, 21" deep

Shelf spacing: Infinitely adjustable
